Production / Assembly

Our machinery is designed for the production of components ranging from high-end to small series for motorsport, aviation and industry.



State-of-the-art CNC-machines have a network connection to the CAD-CAM working places. In this way, highest precision and optimal workflow in the manufacturing process are guaranteed in an effective and highly efficient way.





We are:

• TISAX certified
• DIN ISO 9001 certified
• QSF-A certified (certified company for aviation, aerospace and equipment industry)
• equipped with special tools for the machining of special high-resistant materials (e.g.titanium alloy)



Performances in the fields of production/ manufacture:

• CNC-controlled chipping
• Jig making
• Welding
• Assembly of components
• Mechanical manufacturing of components



We are equipped with state-of-the-art technologies, facilities and competences, such as:

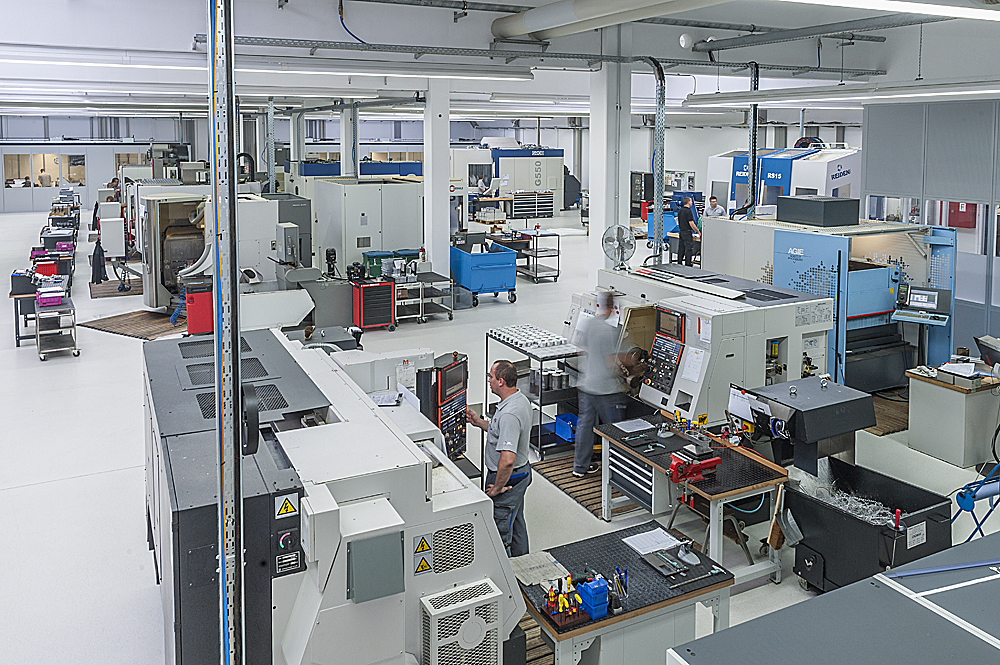

Our CNC machine workshop

CAM-supported, processing centre for the machining of complex components (component dimension of up to 1.50m in length)



Hermle machining centres:

• 5-axis simultan, Heidenhain iTNC 530, range of traverse up to: 800 x 600 x 500 mm

- 2x Hermle C 600 U

- Hermle C 20 U

- Hermle C 800 U

- Hermle C 30 U

• 5-axis simultan, Heidenhain iTNC 530, range of traverse up to: 800 x 950 x 1020 mm

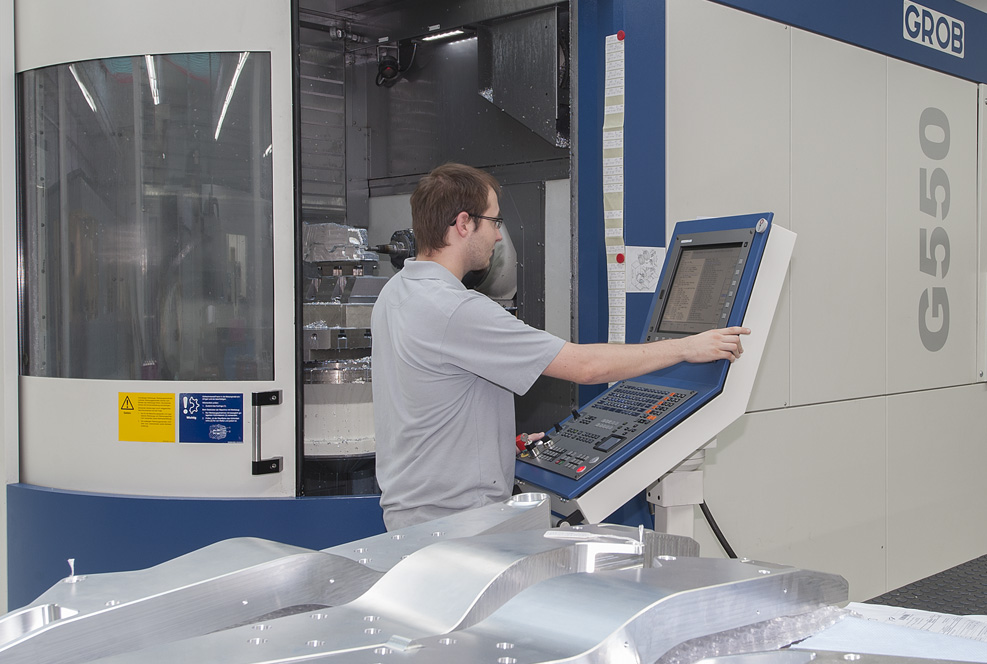

- Grob G550

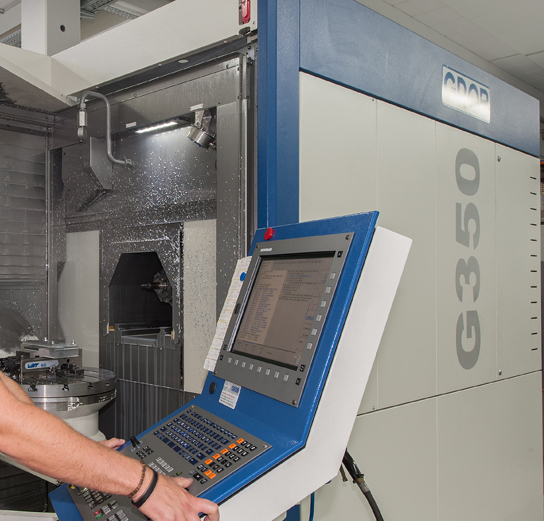

- Grob G350

- Grob G351



Reiden machining centres:

• 5-axis simultan, Heidenhain iTNC 530, range of traverse up to: 1000 x 1100 x 810 mm
• 5-axis simultan, Heidenhain iTNC 640, range of traverse up to: 1000 x 1100 x 810 mm

- NC Rotary table Ø 1'000 x 800 mm

- Swing Ø 1'350 mm



Mazak turning Centres:

• Maximum turning diameter: 320 mm, peak length up to: 1000mm, power tools

- Mazak QTNX 250 2M 1000

- Mazak QTNX 250 2M 500



Agie erosion machines

• Sink-erosion machine, range of traverse: 500 x 350 x 500 mm

- Agie HS3

• Wire eroding machine, range of traverse: 500 x 350 x 400 mm

- Agie Progress V3



• Tool preparation with Zoller Venturion 450 tool measurement
• Erosion centres for the highest precision and finest machining by wire-eroding and sink-erosion
• Own fixture, manufacturing equipment and mould construction
• TIG and MAG welding working places
• 100 tonne press
• Glass bead blasting facility
• Fixture plate 2000 x 1000 mm
• Universal milling machine Deckel FP1
• Universal milling machine Weiler
• Bending machine up to 1000 mm
• Guillotine shears up to 1000 mm
• Laser marking machine for marking of flat and round components
